SDPU

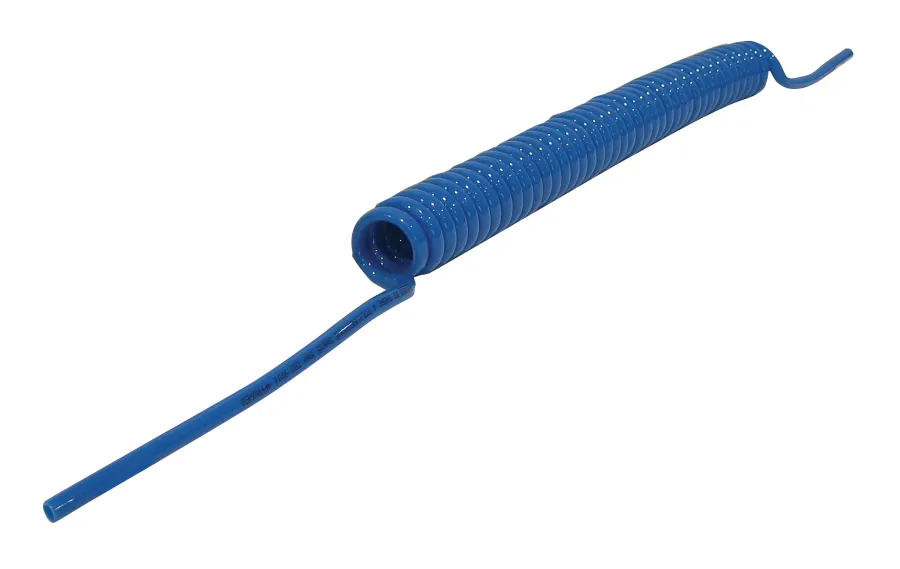

POLYURETHANE POLYETHER 95 SHORE RECOIL TUBING WITH TAILS
Technical characteristics / catalogAignep Scan Labels Certifications
| Code | Ext. mm | Int. mm | Ø Ext. mm | Color | Linear Lenght Mt. | Stowed Lenght mm. (a 23 °C) | Working Lenght Mt. (a 23 °C) | Working Pressure (at 20°C) | Burst Pressure (at 23°C) | Temperature Range | Tangs LEFT/RIGHT | Tolerance | Bag |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SDPU 0064 004 AZ | 6 | 4 | 32 | Light Blue | 4 | 325 | 3 | 11 bar | 32 bar | From -40 °C To +60 °C | 100 - 100 | ± 0,10 mm | 1 |
| SDPU 0085 505 AZ | 8 | 5,5 | 41 | Light Blue | 5 | 410 | 4 | 10 bar | 30 bar | From -40 °C To +60 °C | 120 - 500 | ± 0,10 mm | 1 |
| SDPU 0106 505 AZ | 10 | 6,5 | 60 | Light Blue | 5 | 330 | 4 | 11 bar | 33 bar | From -40 °C To +60 °C | 120 - 500 | ± 0,12 mm | 1 |
| SDPU 0120 805 AZ | 12 | 8 | 80 | Light Blue | 5 | 305 | 3 | 11 bar | 32 bar | From -40 °C To +60 °C | 120 - 500 | ± 0,15 mm | 1 |
| SDPU 0085 075 AZ | 8 | 5,5 | 41 | Light Blue | 7,5 | 660 | 3 | 10 bar | 30 bar | From -40 °C To +60 °C | 120 - 500 | ± 0,10 mm | 1 |
| SDPU 0106 575 AZ | 10 | 6,5 | 60 | Light Blue | 7,5 | 500 | 6 | 11 bar | 33 bar | From -40 °C To +60 °C | 120 - 500 | ± 0,12 mm | 1 |
| SDPU 0120 875 AZ | 12 | 8 | 80 | Light Blue | 7,5 | 430 | 6 | 11 bar | 32 bar | From -40 °C To +60 °C | 120 - 500 | ± 0,15 mm | 1 |
