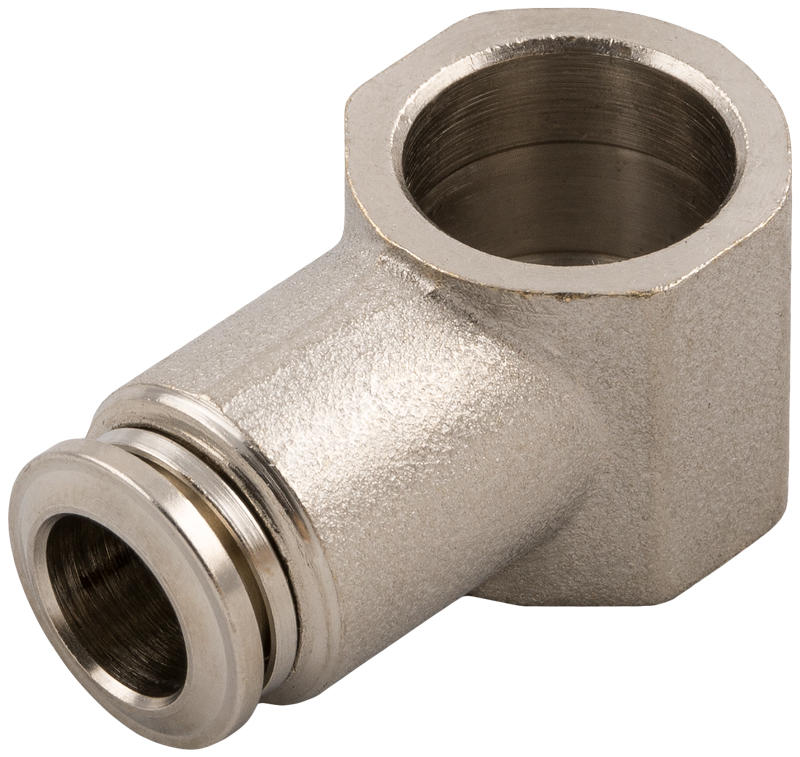

SINGLE BANJO BODY

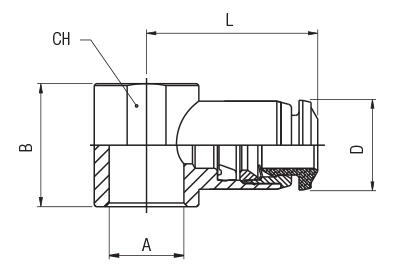

Code	3D Drawings	Tube	A	B	L	CH	D	Bag
57500 00 001	Request access	4 (5/32)	M5 (10/32)	12,5	19	-	10	10
57500 00 002	Request access	4	M6	12,5	19	-	10	10
57500 00 003	Request access	4 (5/32)	1/8	15	21	14	10	10
57500 00 013	Request access	5	M5	12,5	20	-	12.5	10
57500 00 017	Request access	5	M6	12,5	20	-	12.5	10
57500 00 014	Request access	5	1/8	15	21,5	14	12.5	10
57500 00 015	Request access	5	1/4	17	24,5	18	12.5	10
57500 00 016	Request access	6	M5	12,5	20,5	-	12.5	10
57500 00 018	Request access	6	M6	12,5	20,5	-	12.5	10
57500 00 004	Request access	6	1/8	15	22	14	12.5	10
57500 00 005	Request access	6	1/4	17	25	18	12.5	10
57500 00 006	Request access	8 (5/16)	1/8	15	24	14	14	10
57500 00 007	Request access	8 (5/16)	1/4	17	26	18	14	10
57500 00 008	Request access	8 (5/16)	3/8	20	28	21	14	10
57500 00 009	Request access	10	1/4	17	29	18	17	10
57500 00 010	Request access	10	3/8	20	30,5	21	17	10
57500 00 012	Request access	12	3/8	20	32,5	21	21.5	10
57500 00 021	Request access	12	1/2	24	35	25	21.5	10
57500 00 022	Request access	14	1/2	24	35,5	25	21.5	10
