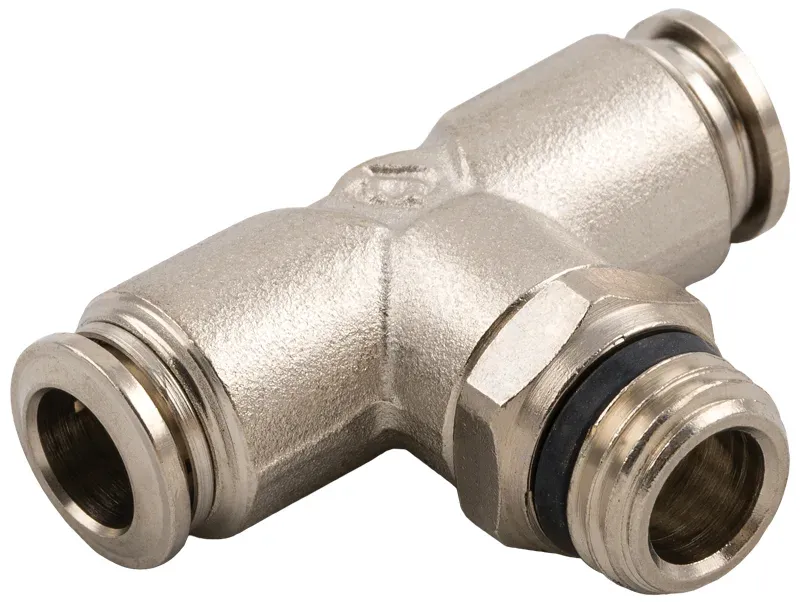

ORIENTING TEE MALE ADAPTOR “UNIVERSAL SHORT” - CENTRE LEG

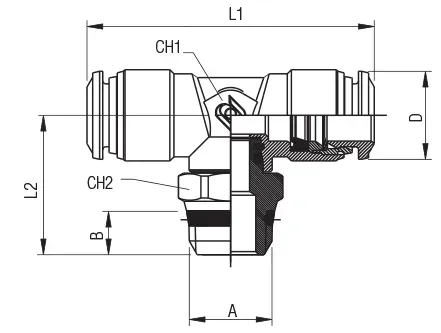

Code	3D Drawings	Tube	A	B	L1	L2	CH1	CH2	D	Bag
89211 00 003	Request access	4 (5/32)	1/8	5,5	34	20	9	13	10	10
89211 00 004	Request access	4 (5/32)	1/4	7	34	21.5	9	15	10	10
57211 00 004	Request access	6	1/8	5,5	42	22	11	13	12.5	10
57211 00 005	Request access	6	1/4	7	42	23,5	11	15	12,5	10
89211 00 016	Request access	8 (5/16)	1/8	5,5	45	25,5	13	13	14,5	10
89211 00 015	Request access	8 (5/16)	1/4	7	45	25,5	13	15	14,5	10
89211 00 017	Request access	8 (5/16)	3/8	7,5	45	26	13	17	14,5	10
57211 00 010	Request access	10	1/4	7	53	28,5	14	16	17,5	10
57211 00 011	Request access	10	3/8	7,5	53	28	14	17	17,5	10
57211 00 012	Request access	10	1/2	9	53	29	14	21	17,5	10
57211 00 013	Request access	12	3/8	7,5	62,5	29,1	16	20	21,5	10
57211 00 014	Request access	12	1/2	9	62,5	31,6	16	21	21,5	10
57211 00 017	Request access	16	3/8	7,5	66,5	41,5	19	25	24	10
57211 00 018	Request access	16	1/2	9	66,5	43	19	25	24	10
