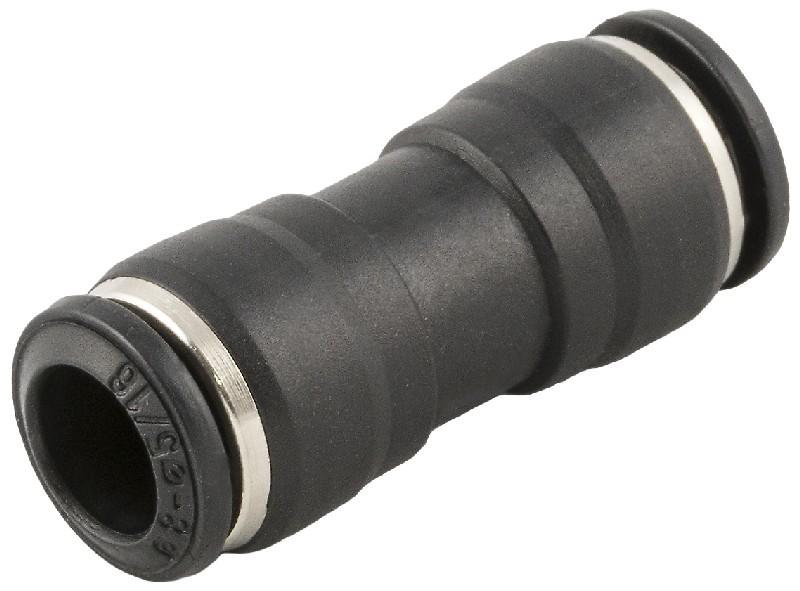

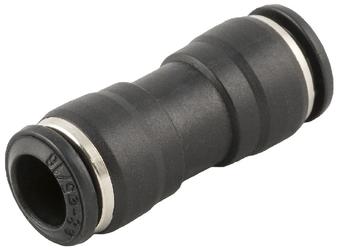

STRAIGHT CONNECTOR

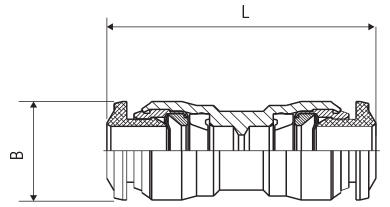

Code	3D Drawings	Tube	Tube	L	D1	D2	Bag
55040 00 002	Request access	4	4	31	10	10	10
55040 00 003	Request access	5	5	34	12	12	10
55040 00 004	Request access	6	6	35	12,5	12,5	10
55040 00 009	Request access	6	4	34,5	12,5	12	10
55040 00 005	Request access	8	8	38	14	14	10
55040 00 015	Request access	8	4	35,5	14	10	10
55040 00 010	Request access	8	6	38	14	14	10
55040 00 006	Request access	10	10	45	17	17	10
55040 00 014	Request access	10	6	41	17	12,5	10
55040 00 011	Request access	10	8	44	17	17	10
55040 00 007	Request access	12	12	50,5	20	20	10
55040 00 016	Request access	12	8	45	20	14	10
55040 00 012	Request access	12	10	49,5	20	20	10
55040 00 008	Request access	14	14	48	21	21	10
55040 00 017	Request access	14	12	48	21	21	10
55040 00 018	Request access	16	16	53,6	24	24	10
