1027

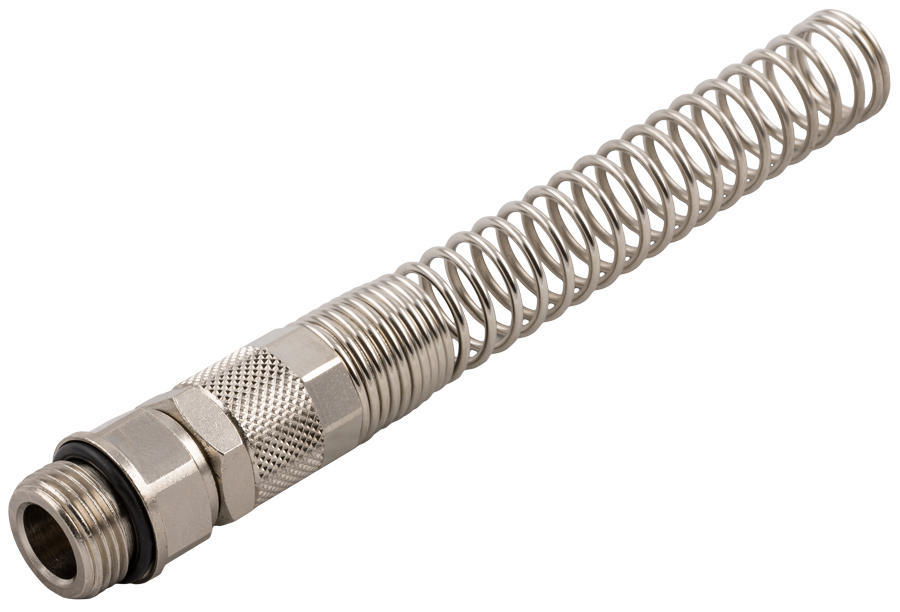

ORIENTING STRAIGHT MALE ADAPTOR (PARALLEL) + NUT WITH SPRING
Technical characteristics / catalogAignep Scan Labels Certifications

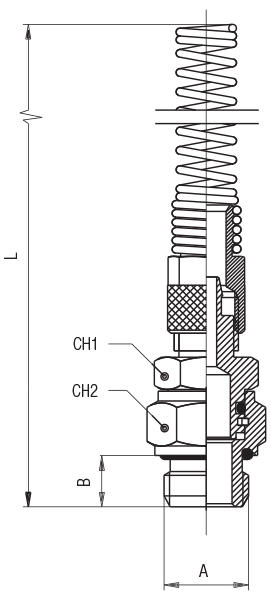

| Code | Draw | Tube | A | B | L | CH1 | CH2 | * | Bag |
|---|---|---|---|---|---|---|---|---|---|
| 01027 00 001 | Download | 6/4 | 1/8 | 5,4 | 116 | 12 | 13 | 10 | |
| 01027 00 002 | Download | 6/4 | 1/4 | 7,1 | 121 | 14 | 16 | 10 | |
| 01027 00 003 | Download | 8/6 | 1/8 | 5,4 | 122 | 12 | 13 | 10 | |
| 01027 00 004 | Download | 8/6 | 1/4 | 7,1 | 126 | 14 | 16 | 10 | |
| 01027 00 005 | Download | 10/6,5 | 1/4 | 7,1 | 134 | 14 | 16 | Particular sizes for the POLYURETHANE tubing. | 10 |
| 01027 00 006 | Download | 10/8 | 1/4 | 7,1 | 134 | 14 | 16 | 10 | |
| 01027 00 007 | Download | 12/8 | 3/8 | 8,1 | 143 | 17 | 18 | Particular sizes for the POLYURETHANE tubing. | 10 |
| 01027 00 008 | Download | 12/10 | 3/8 | 8,1 | 142 | 17 | 18 | 10 |
For the POLYURETHANE tube 8/5 we suggest to use the standard size 8/6
