57020

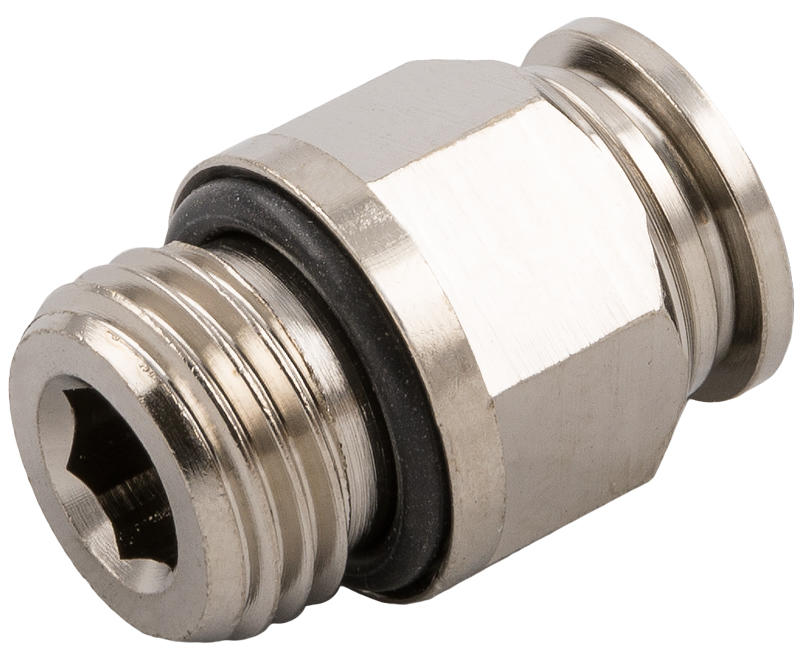

STRAIGHT MALE ADAPTOR (PARALLEL)

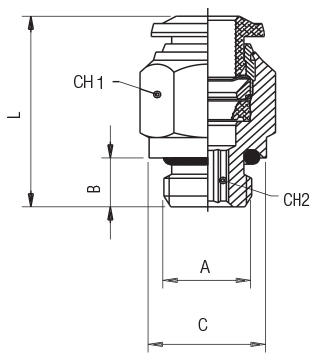

| Code | 3D Drawings | Tube | A | B | C | L | CH1 | CH2 | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|
| 57020 00 001 | Request access | 4 | M5 | 3.6 | 8 | 21 | 10 | 2 | 10 | |
| 57020 00 002 | Request access | 4 | 1/8 | 5.4 | 13 | 20 | 10 | 3 | 10 | |
| 57020 00 022 | Request access | 4 | 1/4 | 7.1 | 16 | 19.5 | 16 | 3 | 10 | |
| 57020 00 041 | Request access | 4 | 3/8 | 8.1 | 20 | 18 | 20 | 3 | 10 | |
| 57020 00 018 | Request access | 5 | M5 | 3.6 | 8 | 23,5 | 12 | 2 | 10 | |
| 57020 00 019 | Request access | 5 | 1/8 | 5.4 | 13 | 22 | 12 | 4 | 10 | |
| 57020 00 020 | Request access | 6 | M5 | 3.6 | 10 | 24,5 | 13 | 2 | 10 | |
| 57020 00 003 | Request access | 6 | 1/8 | 5.4 | 13 | 23,5 | 13 | 4 | 10 | |
| 57020 00 004 | Request access | 6 | 1/4 | 7.1 | 16 | 23,5 | 13 | 4 | 10 | |
| 57020 00 027 | Request access | 6 | 3/8 | 8.1 | 20 | 25 | 13 | 4 | 10 | |
| 57020 00 028 | Request access | 6 | 1/2 | 9.6 | 25 | 27 | 13 | 4 | 10 | |
| 57020 00 005 | Request access | 8 | 1/8 | 5.4 | 13 | 25 | 14 | 5 | 10 | |
| 57020 00 006 | Request access | 8 | 1/4 | 7.1 | 16 | 23 | 14 | 6 | 10 | |
| 57020 00 007 | Request access | 8 | 3/8 | 8.1 | 20 | 24 | 14 | 6 | 10 | |
| 57020 00 029 | Request access | 8 | 1/2 | 9.6 | 25 | 26,5 | 14 | 6 | 10 | |
| 57020 00 030 | Request access | 10 | 1/8 | 5.4 | 13 | 30 | 17 | 5 | 10 | |
| 57020 00 008 | Request access | 10 | 1/4 | 7.1 | 16 | 30,5 | 17 | 6 | 10 | |
| 57020 00 009 | Request access | 10 | 3/8 | 8.1 | 20 | 27,5 | 17 | 8 | 10 | |
| 57020 00 031 | Request access | 10 | 1/2 | 9.6 | 25 | 27 | 17 | 8 | 10 | |
| 57020 00 032 | Request access | 12 | 1/4 | 7.1 | 16 | 34,5 | 20 | 6 | 10 | |
| 57020 00 011 | Request access | 12 | 3/8 | 8.1 | 20 | 34 | 20 | 8 | 10 | |
| 57020 00 023 | Request access | 12 | 1/2 | 9.6 | 25 | 31 | 22 | 10 | 10 | |
| 57020 00 024 | Request access | 14 | 3/8 | 8.1 | 20 | 35 | 21 | 10 | 10 | |
| 57020 00 025 | Request access | 14 | 1/2 | 9.6 | 25 | 32 | 22 | 11 | 10 | |
| 57020 00 042 | Request access | 16 | 3/8 | 8.1 | 20 | 36,5 | 23 | 10 | 10 | |
| 57020 00 043 | Request access | 16 | 1/2 | 9.6 | 25 | 37,5 | 25 | 12 | 10 | |
| 57020 00 046 | Request access | 4 | M6X1 | 5.4 | 12 | 18,5 | 10 | 3 | 10 | |
| 57020 00 033 | Request access | 4 | M8X1 | 5.4 | 12 | 18,5 | 10 | 3 | 10 | |
| 57020 00 037 | Request access | 6 | M8X1 | 5.4 | 12 | 24,5 | 13 | 3 | 10 | |
| 57020 00 038 | Request access | 6 | M10X1 | 5.4 | 13 | 23 | 13 | 4 | 10 | |
| 57020 00 012 | Request access | 6 | M12X1 | 7.3 | 15 | 23,5 | 13 | 4 | 10 | |
| 57020 00 013 | Request access | 6 | M12X1,25 | 7.3 | 15 | 23,5 | 13 | 4 | 10 | |
| 57020 00 014 | Request access | 6 | M12X1,5 | 7.3 | 15 | 23,5 | 13 | 4 | 10 | |
| 57020 00 039 | Request access | 8 | M8X1 | 5.4 | 12 | 25,5 | 14 | 4 | 10 | |
| 57020 00 040 | Request access | 8 | M10X1 | 5.4 | 13 | 25,5 | 14 | 4 | 10 | |
| 57020 00 017 | Request access | 8 | M12X1,5 | 7.3 | 15 | 27,5 | 14 | 6 | 10 |
