57116

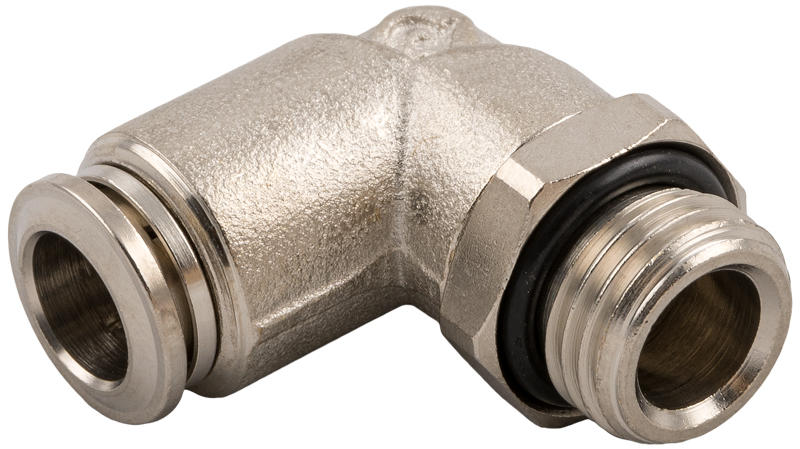

ORIENTING ELBOW MALE ADAPTOR (PARALLEL)
Technical characteristics / catalogAignep Scan Labels Certifications

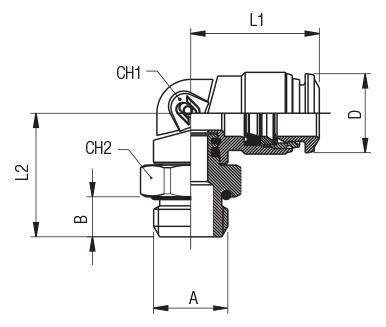

| Code | Draw | Tube | A | B | L1 | L2 | CH1 | CH2 | D | Bag |
|---|---|---|---|---|---|---|---|---|---|---|
| 57116 00 002 | Download | 4 | M5 | 3.6 | 18 | 17.5 | 9 | 8 | 10 | 10 |
| 57116 00 003 | Download | 4 | 1/8 | 5.4 | 18 | 18 | 9 | 13 | 10 | 10 |
| 57116 00 004 | Download | 4 | 1/4 | 7.1 | 18 | 18 | 9 | 16 | 10 | 10 |
| 57116 00 005 | Download | 5 | M5 | 3.6 | 20 | 20 | 11 | 11 | 12,5 | 10 |
| 57116 00 006 | Download | 5 | 1/8 | 5.4 | 20 | 20 | 11 | 13 | 12,5 | 10 |
| 57116 00 007 | Download | 6 | M5 | 3.6 | 21 | 20 | 11 | 11 | 12,5 | 10 |
| 57116 00 008 | Download | 6 | 1/8 | 5.4 | 21 | 20 | 11 | 13 | 12,5 | 10 |
| 57116 00 009 | Download | 6 | 1/4 | 7.1 | 21 | 21,5 | 11 | 16 | 12,5 | 10 |
| 57116 00 030 | Download | 6 | 3/8 | 8.1 | 21 | 21,5 | 11 | 16 | 12,5 | 10 |
| 57116 00 010 | Download | 8 | 1/8 | 5.4 | 22,5 | 21 | 12 | 13 | 14,5 | 10 |
| 57116 00 011 | Download | 8 | 1/4 | 7.1 | 22,5 | 21,5 | 12 | 16 | 14,5 | 10 |
| 57116 00 012 | Download | 8 | 3/8 | 8.1 | 22,5 | 23,5 | 12 | 20 | 14,5 | 10 |
| 57116 00 013 | Download | 8 | 1/2 | 9.6 | 22,5 | 25 | 12 | 25 | 14,5 | 10 |
| 57116 00 014 | Download | 10 | 1/4 | 7.1 | 26,5 | 25,5 | 14 | 16 | 17,5 | 10 |
| 57116 00 015 | Download | 10 | 3/8 | 8.1 | 26,5 | 25 | 14 | 20 | 17,5 | 10 |
| 57116 00 016 | Download | 10 | 1/2 | 9.6 | 26,5 | 26,5 | 14 | 25 | 17,5 | 10 |
| 57116 00 025 | Download | 12 | 1/4 | 7.1 | 30,5 | 29 | 16 | 16 | 21,5 | 10 |
| 57116 00 017 | Download | 12 | 3/8 | 8.1 | 31,5 | 27 | 16 | 20 | 21,5 | 10 |
| 57116 00 018 | Download | 12 | 1/2 | 9.6 | 31,5 | 28,5 | 16 | 25 | 21,5 | 10 |
| 57116 00 019 | Download | 14 | 3/8 | 8.1 | 31,5 | 27,5 | 16 | 20 | 21,5 | 10 |
| 57116 00 020 | Download | 14 | 1/2 | 9.6 | 31,5 | 29 | 16 | 25 | 21,5 | 10 |
| 57116 00 031 | 16 | 3/8 | 8.1 | 33,5 | 40 | 19 | 25 | 24 | 10 | |
| 57116 00 032 | 16 | 1/2 | 9.6 | 33,5 | 41,5 | 19 | 25 | 24 | 10 | |
| 57116 00 026 | Download | 4 | M6X1 | 3.6 | 17,5 | 18 | 9 | 8 | 10 | 10 |
| 57116 00 027 | Download | 4 | M8X1 | 5.4 | 17,5 | 18 | 9 | 12 | 10 | 10 |
| 57116 00 028 | Download | 6 | M10X1 | 5.4 | 21 | 21,5 | 11 | 13 | 12 | 10 |
| 57116 00 021 | Download | 6 | M12X1 | 7.3 | 20 | 22 | 11 | 16 | 12,5 | 10 |
| 57116 00 022 | Download | 6 | M12X1,25 | 7.3 | 20 | 22 | 11 | 16 | 12,5 | 10 |
| 57116 00 023 | Download | 6 | M12X1,5 | 7.3 | 20 | 22 | 11 | 16 | 12,5 | 10 |
| 57116 00 024 | Download | 8 | M12X1,5 | 7.3 | 22,5 | 22 | 12 | 16 | 14,5 | 10 |
