Filter

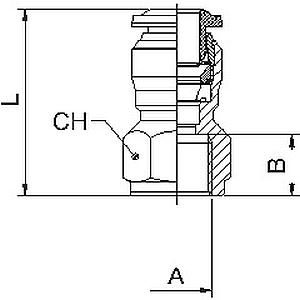

| Code | 3D Drawings | Tube | A | B | L | CH | Bag | |
|---|---|---|---|---|---|---|---|---|
| 50030 00 N07 | Request access | 3 | M5 | 5,5 | 18,5 | 9 | 10 | |
| 50030 00 N08 | Request access | 4 | M5 | 5,5 | 21 | 11 | 10 | |
| 50030 00 N01 | Request access | 4 | 1/8 | 8,5 | 24 | 13 | 10 | |
| 50030 00 N09 | Request access | 4 | 1/4 | 11 | 27,5 | 16 | 10 | |
| 50030 00 N06 | Request access | 5 | 1/8 | 8,5 | 26,5 | 13 | 10 | |
| 50030 00 N02 | Request access | 6 | 1/8 | 8,5 | 26 | 13 | 10 | |
| 50030 00 N03 | Request access | 6 | 1/4 | 11 | 29,5 | 16 | 10 | |
| 50030 00 N04 | Request access | 8 | 1/8 | 8,5 | 27 | 15 | 10 | |
| 50030 00 N05 | Request access | 8 | 1/4 | 11 | 29,5 | 17 | 10 | |
| 50030 00 N10 | Request access | 8 | 3/8 | 12 | 32 | 19 | 10 | |
| 50030 00 N11 | Request access | 10 | 1/4 | 11 | 32 | 18 | 10 | |
| 50030 00 N12 | Request access | 10 | 3/8 | 12 | 33,5 | 19 | 10 | |
| 50030 00 N13 | Request access | 10 | 1/2 | 15 | 39 | 24 | 10 | |
| 50030 00 N14 | Request access | 12 | 3/8 | 12 | 36 | 21 | 10 | |
| 50030 00 N15 | Request access | 12 | 1/2 | 15 | 41 | 24 | 10 | |
| 50030 00 N16 | Request access | 16 | 3/8 | 12 | 40,3 | 24 | 10 | |
| 50030 00 N17 | Request access | 16 | 1/2 | 15 | 41,3 | 24 | 10 |
