55325

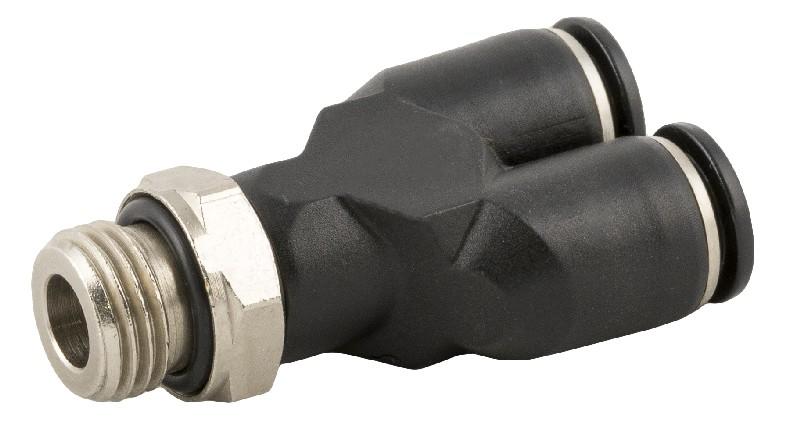

ORIENTING Y MALE ADAPTOR (PARALLEL)
Technical characteristics / catalogAignep Scan Labels Certifications

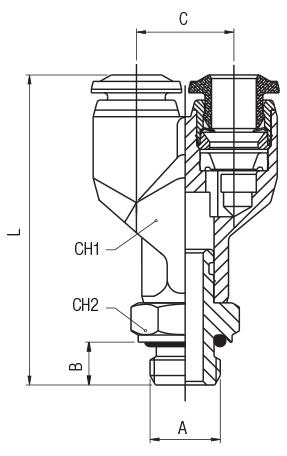

| Code | Draw | Tube | A | B | C | L | CH1 | CH2 | Bag |
|---|---|---|---|---|---|---|---|---|---|
| 55325 00 002 | Download | 4 | M5 | 3.6 | 11 | 36.5 | 10 | 10 | 10 |
| 55325 00 003 | Download | 4 | 1/8 | 5.4 | 11 | 38,5 | 10 | 13 | 10 |
| 55325 00 009 | Download | 4 | 1/4 | 7.1 | 11 | 40,5 | 10 | 16 | 10 |
| 55325 00 004 | Download | 6 | M5 | 3.6 | 13.5 | 41,5 | 12 | 10 | 10 |
| 55325 00 005 | Download | 6 | 1/8 | 5.4 | 13.5 | 43,5 | 12 | 13 | 10 |
| 55325 00 006 | Download | 6 | 1/4 | 7.1 | 13.5 | 46,5 | 12 | 16 | 10 |
| 55325 00 007 | Download | 8 | 1/8 | 5.4 | 15.5 | 47 | 14 | 13 | 10 |
| 55325 00 008 | Download | 8 | 1/4 | 7.1 | 15.5 | 50 | 14 | 16 | 10 |
| 55325 00 010 | Download | 8 | 3/8 | 8.1 | 15.5 | 52 | 14 | 20 | 10 |
| 55325 00 011 | Download | 10 | 1/4 | 7.1 | 19 | 59,5 | 17 | 16 | 10 |
| 55325 00 012 | Download | 10 | 3/8 | 8.1 | 19 | 59,5 | 17 | 20 | 10 |
| 55325 00 013 | Download | 10 | 1/2 | 9.6 | 19 | 62 | 17 | 24 | 10 |
| 55325 00 014 | Download | 12 | 3/8 | 8.1 | 22 | 68,5 | 20 | 20 | 10 |
| 55325 00 015 | Download | 12 | 1/2 | 9.6 | 22 | 71 | 20 | 24 | 10 |
