55216

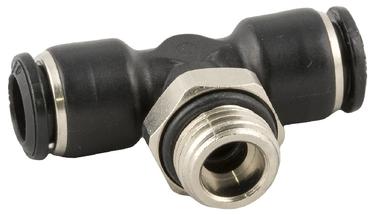

ORIENTING TEE MALE ADAPTOR (PARALLEL) - CENTRE LEG
Technical characteristics / catalogAignep Scan Labels Certifications

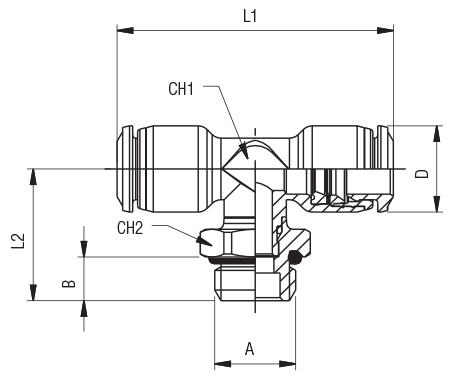

| Code | Draw | Tube | A | B | L1 | L2 | CH1 | CH2 | D | Bag |
|---|---|---|---|---|---|---|---|---|---|---|
| 55216 00 002 | Download | 4 | M5 | 3.6 | 33 | 15.5 | 7 | 9 | 10 | 10 |
| 55216 00 004 | Download | 4 | 1/8 | 5.4 | 33 | 17,1 | 7 | 13 | 10 | 10 |
| 55216 00 005 | Download | 4 | 1/4 | 7.1 | 33 | 18,8 | 7 | 16 | 10 | 10 |
| 55216 00 007 | Download | 5 | M5 | 3.6 | 40 | 14,7 | 9 | 9 | 12 | 10 |
| 55216 00 009 | Download | 5 | 1/8 | 5.4 | 40 | 18,4 | 9 | 13 | 12 | 10 |
| 55216 00 011 | Download | 6 | M5 | 3.6 | 41 | 14,7 | 9 | 9 | 12.5 | 10 |
| 55216 00 013 | Download | 6 | 1/8 | 5.4 | 41 | 18,4 | 9 | 13 | 12.5 | 10 |
| 55216 00 014 | Download | 6 | 1/4 | 7.1 | 41 | 20 | 9 | 16 | 12.5 | 10 |
| 55216 00 017 | Download | 8 | 1/8 | 5.4 | 44 | 22,1 | 10 | 13 | 14 | 10 |
| 55216 00 018 | Download | 8 | 1/4 | 7.1 | 44 | 21,4 | 10 | 16 | 14 | 10 |
| 55216 00 019 | Download | 8 | 3/8 | 8.1 | 44 | 22,8 | 10 | 20 | 14 | 10 |
| 55216 00 021 | Download | 10 | 1/4 | 7.1 | 53 | 26,7 | 13 | 16 | 17 | 10 |
| 55216 00 022 | Download | 10 | 3/8 | 8.1 | 53 | 26,2 | 13 | 20 | 17 | 10 |
| 55216 00 023 | Download | 10 | 1/2 | 9.6 | 53 | 27,7 | 13 | 25 | 17 | 10 |
| 55216 00 024 | Download | 12 | 1/4 | 7.1 | 61,5 | 28,1 | 16 | 16 | 20 | 10 |
| 55216 00 025 | Download | 12 | 3/8 | 8.1 | 61,5 | 27,6 | 16 | 20 | 20 | 10 |
| 55216 00 026 | Download | 12 | 1/2 | 9.6 | 61,5 | 29,1 | 16 | 25 | 20 | 10 |
| 55216 00 027 | Download | 14 | 3/8 | 8.1 | 61 | 31,8 | 18 | 20 | 21 | 10 |
| 55216 00 028 | Download | 14 | 1/2 | 9.6 | 61 | 29,8 | 18 | 25 | 21 | 10 |
| 55216 00 029 | Download | 16 | 3/8 | 8.1 | 65,6 | 33,8 | 20 | 22 | 24 | 10 |
| 55216 00 030 | Download | 16 | 1/2 | 9.6 | 65,6 | 35,8 | 20 | 25 | 24 | 10 |
