Push-In Fittings>

55000 Series

55160

45° ORIENTING ELBOW

Technical characteristics / catalog Aignep Scan Labels Certifications

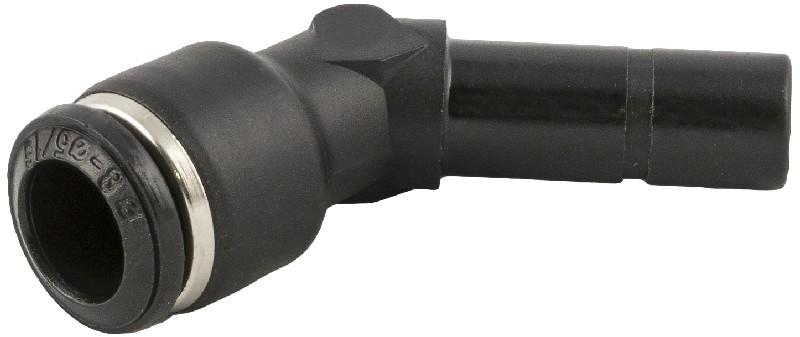

45° ORIENTING ELBOW

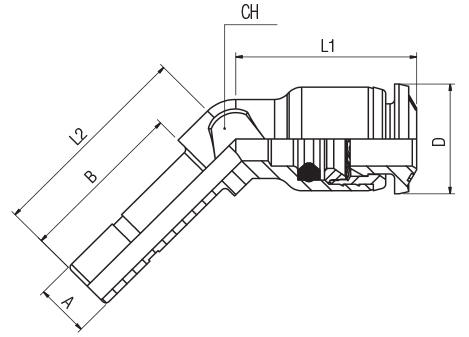

45° ORIENTING ELBOW

Code			Draw	Tube	A	B	L1	L2	CH	D	Bag
55160 00 001			Download	4	4	17	12.5	21	7	10	10
55160 00 005			Download	6	6	19	20.5	23.5	9	12	10
55160 00 007			Download	8	8	20	22	25	10	14	10
55160 00 009			Download	10	10	22.5	26.5	30	13	17	10
55160 00 011			Download	12	12	25.5	30	33.5	16	20	10

Code	Draw	Tube	A	B	L1	L2	CH	D	Bag
55160 00 001	Download	4	4	17	12.5	21	7	10	10
55160 00 005	Download	6	6	19	20.5	23.5	9	12	10
55160 00 007	Download	8	8	20	22	25	10	14	10
55160 00 009	Download	10	10	22.5	26.5	30	13	17	10
55160 00 011	Download	12	12	25.5	30	33.5	16	20	10
