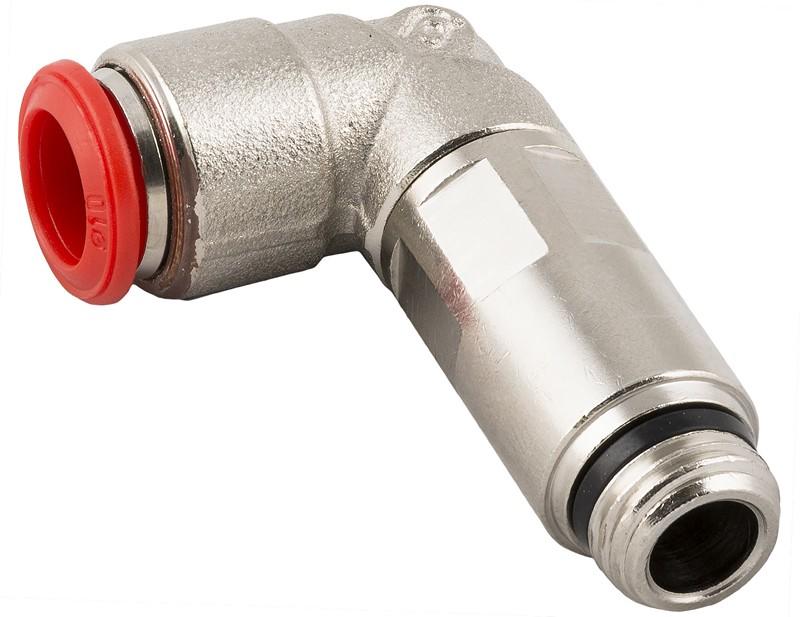

EXTENDED ORIENTING ELBOW MALE ADAPTOR “UNIVERSAL SHORT”

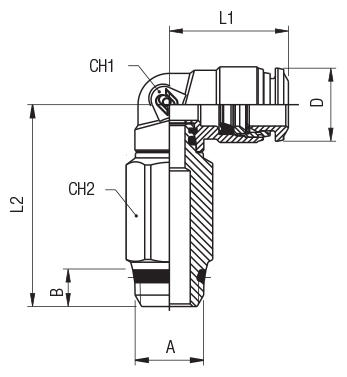

Code	3D Drawings	Tube	A	B	L1	L2	CH1	CH2	D	Bag
50121 00 001	Request access	4	1/8	5,5	18	31.5	9	12	10	10
50121 00 002	Request access	4	1/4	7	18	33	9	15	10	10
50121 00 003	Request access	5	1/8	5,5	20	36	11	12	12.5	10
50121 00 004	Request access	6	1/8	5,5	21	36	11	12	12.5	10
50121 00 005	Request access	6	1/4	7	21	37,5	11	15	12.5	10
50121 00 006	Request access	8	1/8	5,5	22,5	40,5	12	12	14.5	10
50121 00 007	Request access	8	1/4	7	22,5	40,5	12	15	14.5	10
50121 00 008	Request access	8	3/8	7,5	22,5	41	12	16	14.5	10
50121 00 009	Request access	10	1/4	7	26,5	48	14	15	17.5	10
50121 00 010	Request access	10	3/8	7,5	26,5	48	14	17	17.5	10
