40020V

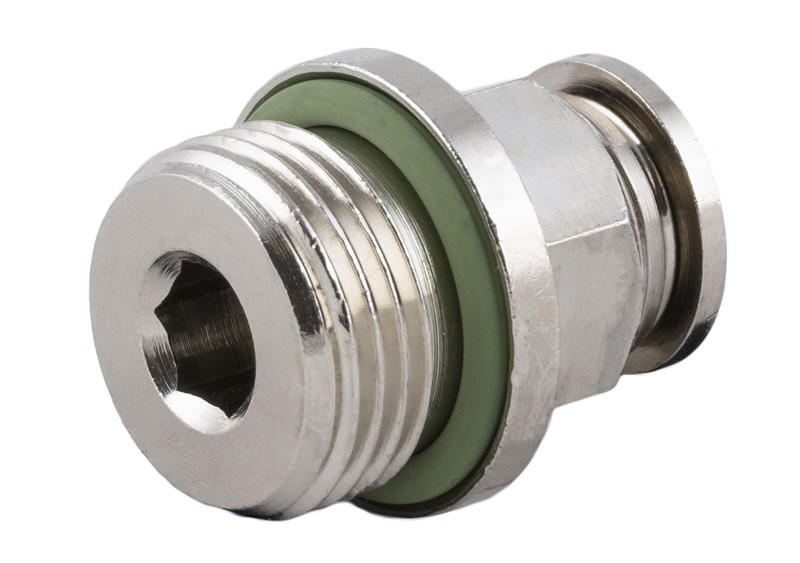

STRAIGHT MALE ADAPTOR (PARALLEL)
Technical characteristics / catalogAignep Scan Labels Certifications

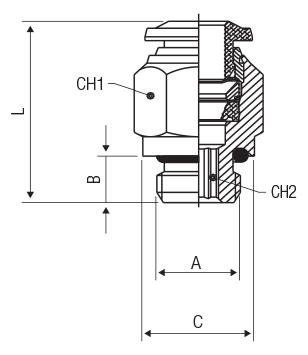

| Code | Draw | Tube | A | B | C | L | CH1 | CH2 | Bag |
|---|---|---|---|---|---|---|---|---|---|
| 40020 V0 001 | Download | 4 | M5 | 3.6 | 8 | 20 | 10 | 2 | 10 |
| 40020 V0 037 | Download | 4 | M6X1 | 4.8 | 10 | 20 | 10 | 2.5 | 10 |
| 40020 V0 033 | Download | 4 | M8X1 | 5.4 | 12 | 18.5 | 10 | 3 | 10 |
| 40020 V0 002 | Download | 4 | 1/8 | 5.4 | 13 | 20 | 10 | 3 | 10 |
| 40020 V0 022 | Download | 4 | 1/4 | 7.1 | 16 | 19,5 | 16 | 3 | 10 |
| 40020 V0 020 | Download | 6 | M5 | 3.6 | 10 | 26,5 | 13 | 2 | 10 |
| 40020 V0 003 | Download | 6 | 1/8 | 5.4 | 13 | 23,5 | 13 | 4 | 10 |
| 40020 V0 004 | Download | 6 | 1/4 | 7.1 | 16 | 23,5 | 13 | 4 | 10 |
| 40020 V0 027 | Download | 6 | 3/8 | 8.1 | 20 | 25 | 13 | 4 | 10 |
| 40020 V0 028 | Download | 6 | 1/2 | 9.6 | 25 | 27 | 13 | 4 | 10 |
| 40020 V0 005 | Download | 8 | 1/8 | 5.4 | 13 | 25 | 14 | 5 | 10 |
| 40020 V0 006 | Download | 8 | 1/4 | 7.1 | 16 | 23 | 14 | 6 | 10 |
| 40020 V0 007 | Download | 8 | 3/8 | 8.1 | 20 | 24 | 14 | 6 | 10 |
| 40020 V0 029 | Download | 8 | 1/2 | 9.6 | 25 | 26,5 | 14 | 6 | 10 |
| 40020 V0 008 | Download | 10 | 1/4 | 7.1 | 16 | 30,5 | 17 | 6 | 10 |
| 40020 V0 009 | Download | 10 | 3/8 | 8.1 | 20 | 27,5 | 17 | 8 | 10 |
| 40020 V0 031 | Download | 10 | 1/2 | 9.6 | 25 | 27 | 17 | 8 | 10 |
| 40020 V0 032 | Download | 12 | 1/4 | 7.1 | 16 | 34,5 | 20 | 6 | 10 |
| 40020 V0 011 | Download | 12 | 3/8 | 8.1 | 20 | 34 | 20 | 8 | 10 |
| 40020 V0 023 | Download | 12 | 1/2 | 9.6 | 25 | 31 | 22 | 10 | 10 |
| 40020 V0 024 | Download | 14 | 3/8 | 8.1 | 20 | 35 | 21 | 10 | 10 |
| 40020 V0 025 | Download | 14 | 1/2 | 9.6 | 25 | 32 | 22 | 11 | 10 |
