Pneumatic Actuators>

GR02F Series

>GR02F
GR02F

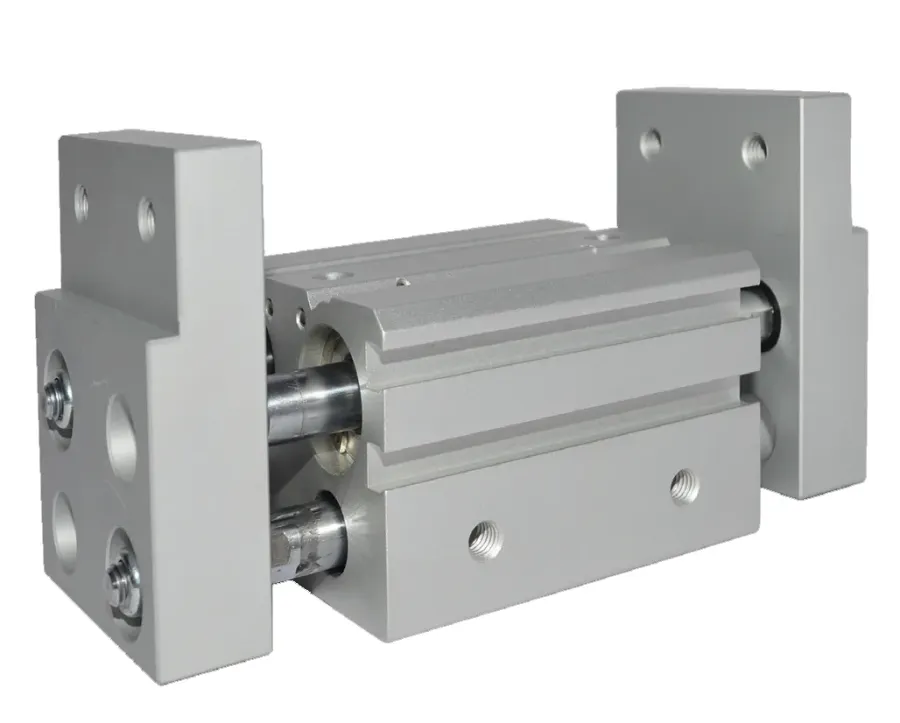

WIDE TYPE PNEUMATIC GRIPPER

Technical characteristics / catalogAignep Scan Labels Certifications
WIDE TYPE PNEUMATIC GRIPPER
Code  Draw Ø A B C D E F G H J

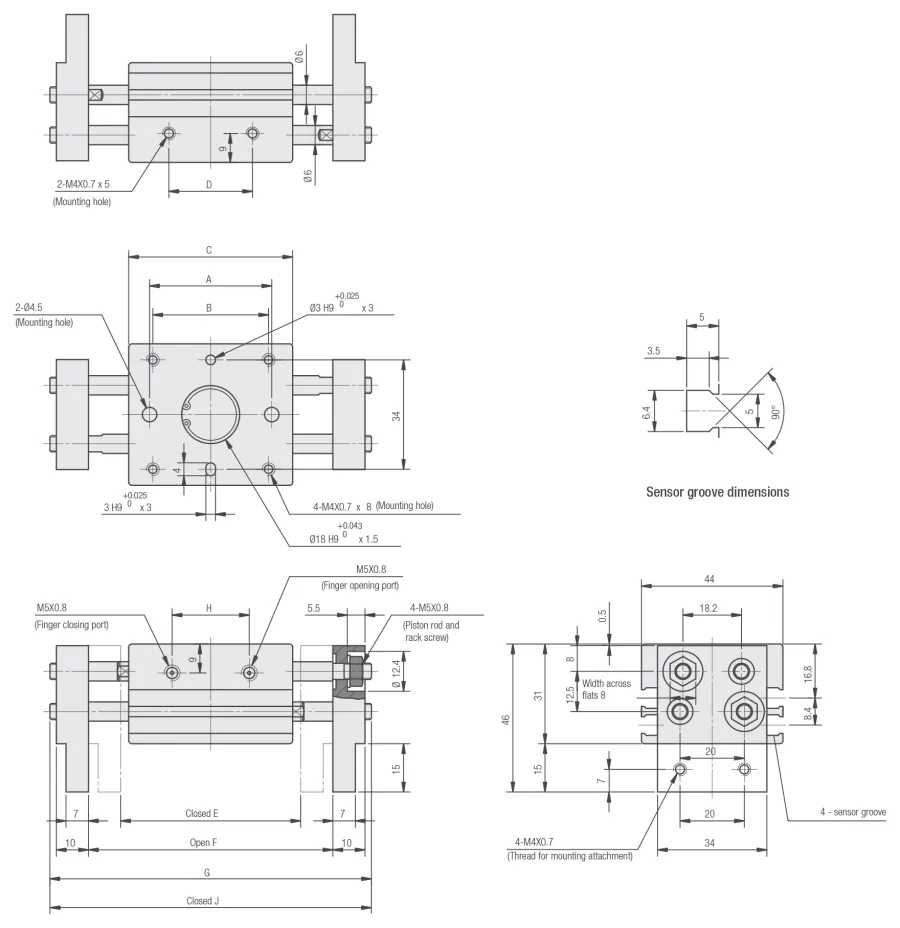

GR02F 010     DownloadShow image 10 38 36 51 26 56 76 100 24 80

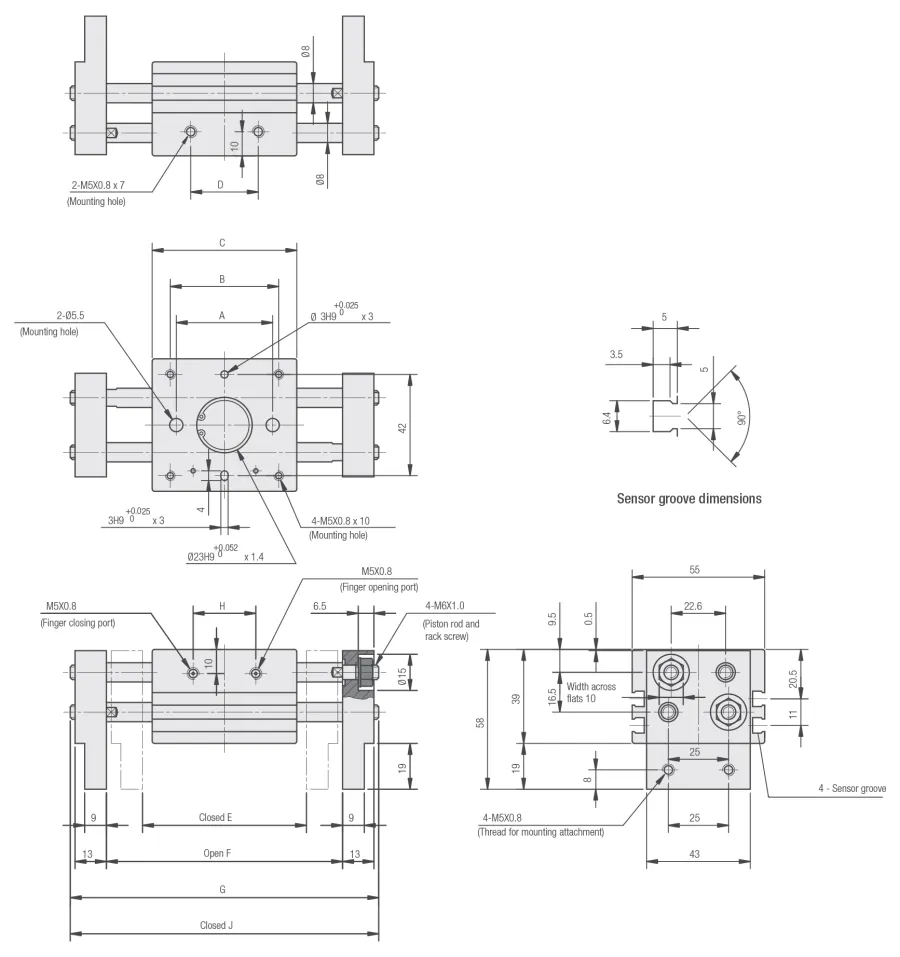

GR02F 016     DownloadShow image 16 40 45 60 28 68 98 128 26 98

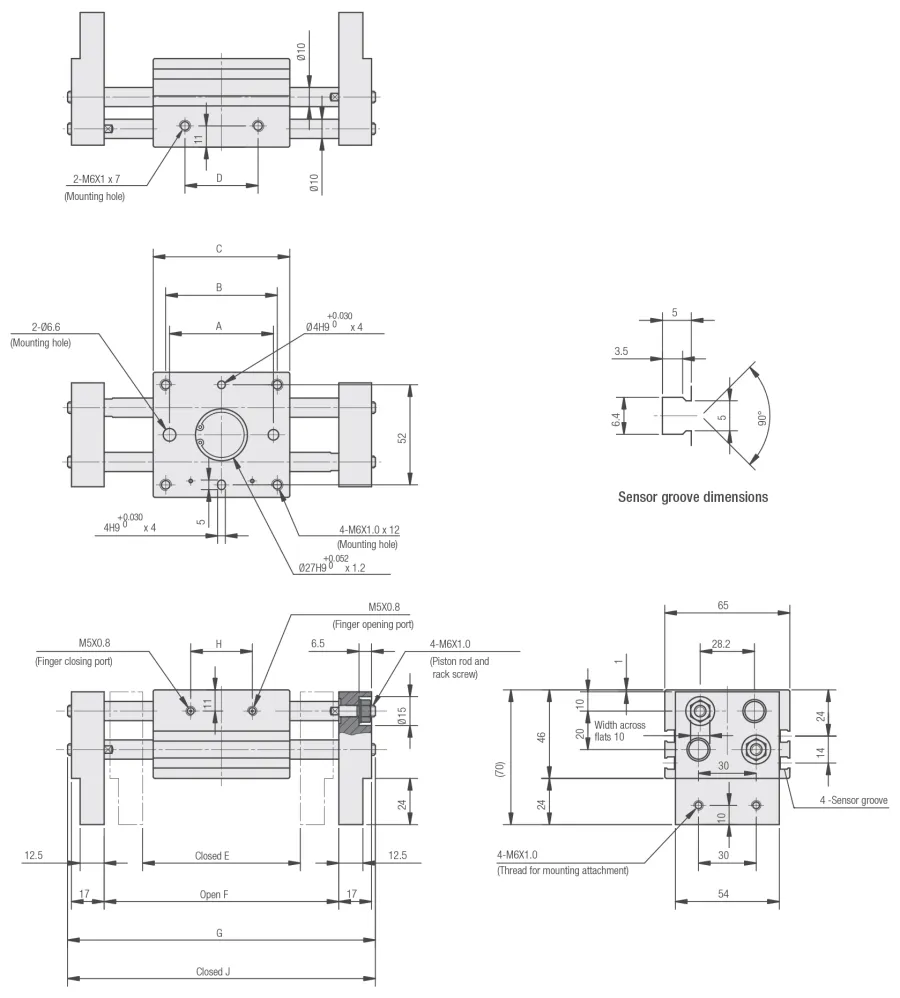

GR02F 020     DownloadShow image 20 54 58 71 38 82 122 160 32 120

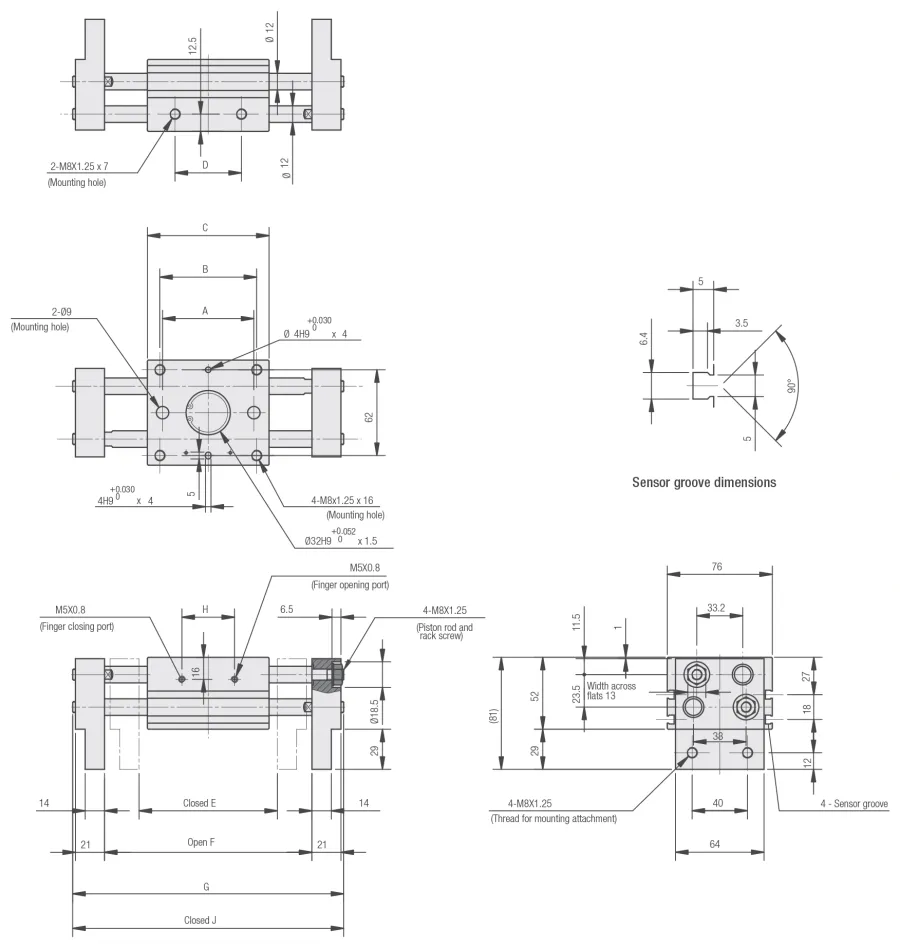

GR02F 025     DownloadShow image 25 66 70 88 48 100 150 196 38 146

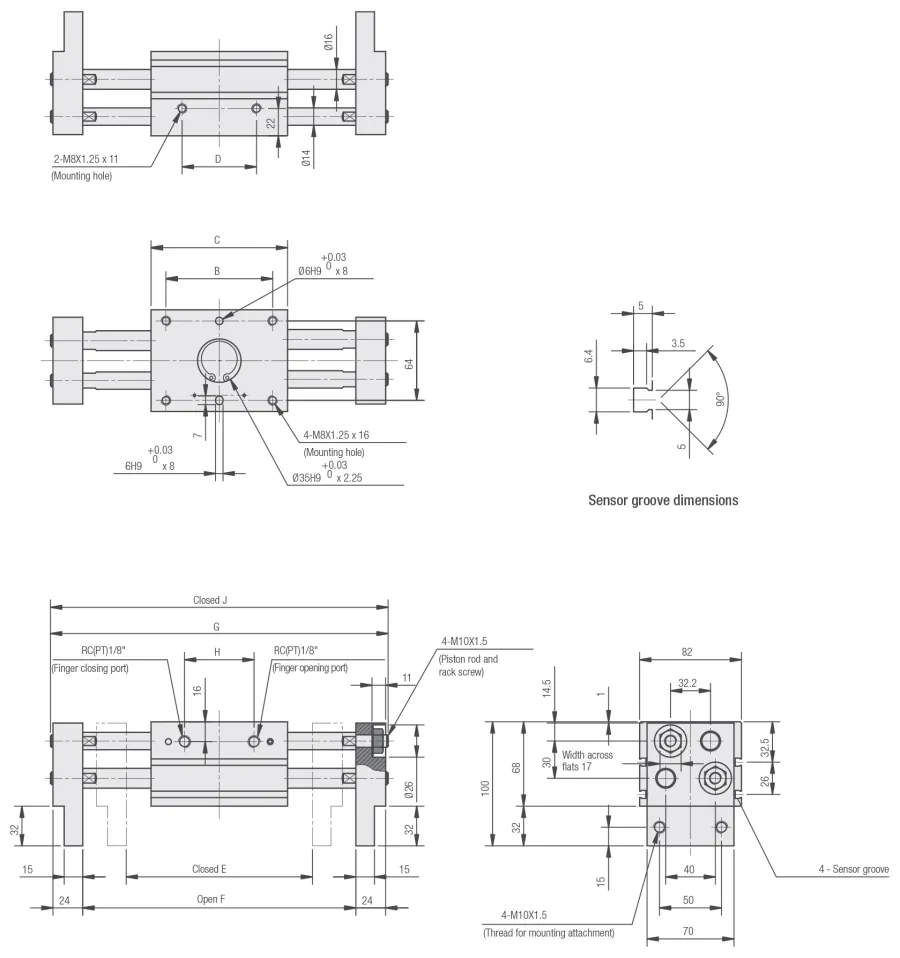

GR02F 032     DownloadShow image 32 - 86 110 60 150 220 272 56 202
Code Draw Ø A B C D E F G H J
GR02F 010 DownloadShow image 10 38 36 51 26 56 76 100 24 80
GR02F 016 DownloadShow image 16 40 45 60 28 68 98 128 26 98
GR02F 020 DownloadShow image 20 54 58 71 38 82 122 160 32 120
GR02F 025 DownloadShow image 25 66 70 88 48 100 150 196 38 146
GR02F 032 DownloadShow image 32 - 86 110 60 150 220 272 56 202
