Serie X1Y - 2/2 NC

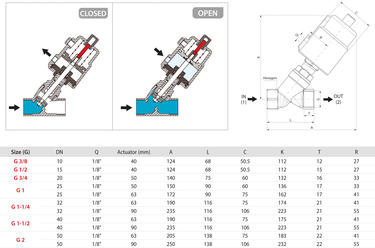

ANGLE SEAT VALVES - INLET BELOW SEAT - STAINLESS STEEL ACTUATOR
Technical characteristics / catalogAignep Scan Labels Certifications
| Code | Draw | Sealing material | Temperature | Port size | DN (mm) | Ø Orifice (mm) | Viscosity (cSt) | Kv (m3/h) | Actuator size (mm) | Control pressure | OPD (ΔP) | Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| X1Y 07 1 050 0 | Download | PTFE | -10°C +180°C | 3/4" | 20 | 18 | 600 | 7.6 | 50 | ≥ 4.5 bar | 0 - 14 bar | 1 |
