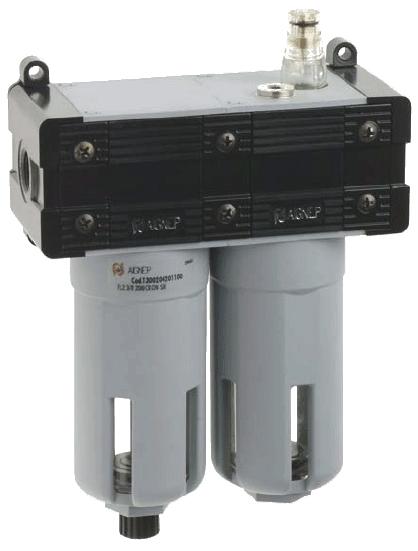

FRL Series

T300

F + L

Technical characteristics / catalog Aignep Scan Labels Certifications

F + L

F + L

Thread: 1"Filtration: 50 µm Oil load: Automatic

Clear all fields

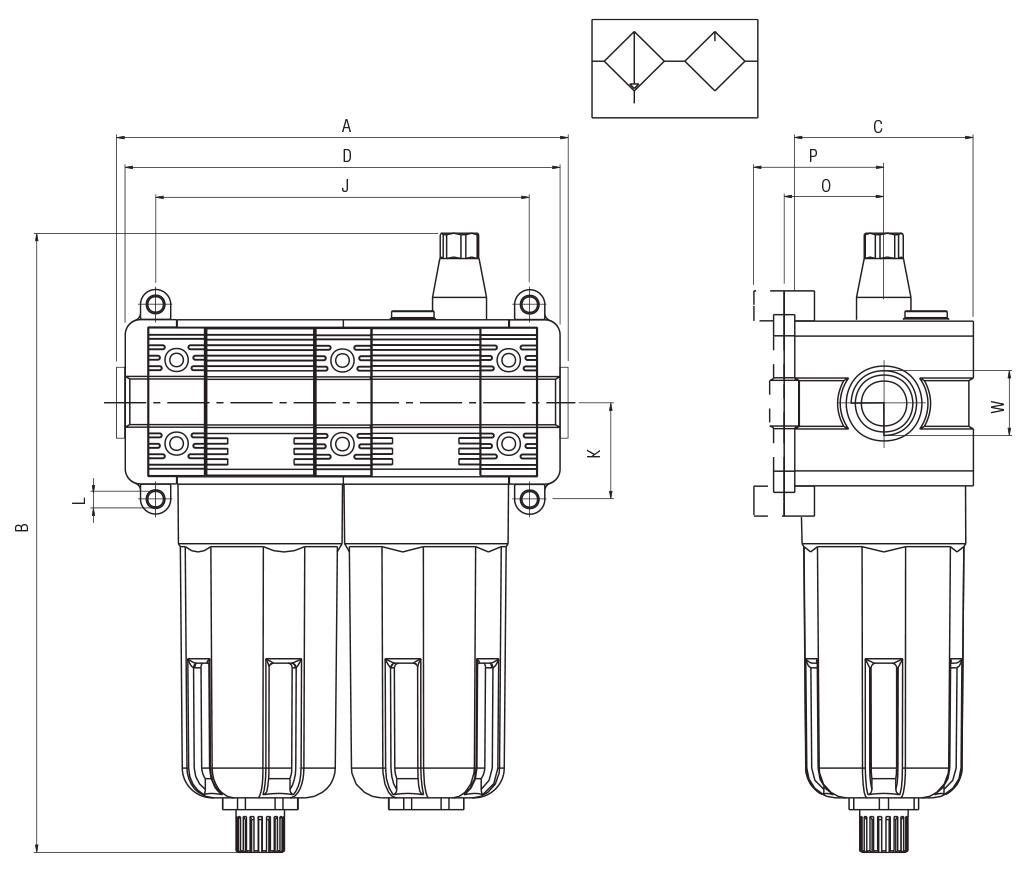

Code			Size	Thread	Filtration	Condensate exhaust System	Oil loading System	Flow Rate	A	B	C	D	W	J	K	L	O	P
T300 309 301 200			F+L 3	1"	50 µm	Semiautomatic/Manual	Automatic	5000 NI/min	176	226.5	70	165	1"	144	38	Ø X M6	38.5	45
T300 309 302 200			F+L 3	1"	50 µm	Automatic	Automatic	5000 NI/min	176	226.5	70	165	1"	144	38	Ø X M6	38.5	45

Code	Size	Thread	Filtration	Condensate exhaust System	Oil loading System	Flow Rate	A	B	C	D	W	J	K	L	O	P
T300 309 301 200	F+L 3	1"	50 µm	Semiautomatic/Manual	Automatic	5000 NI/min	176	226.5	70	165	1"	144	38	Ø X M6	38.5	45
T300 309 302 200	F+L 3	1"	50 µm	Automatic	Automatic	5000 NI/min	176	226.5	70	165	1"	144	38	Ø X M6	38.5	45
