6310

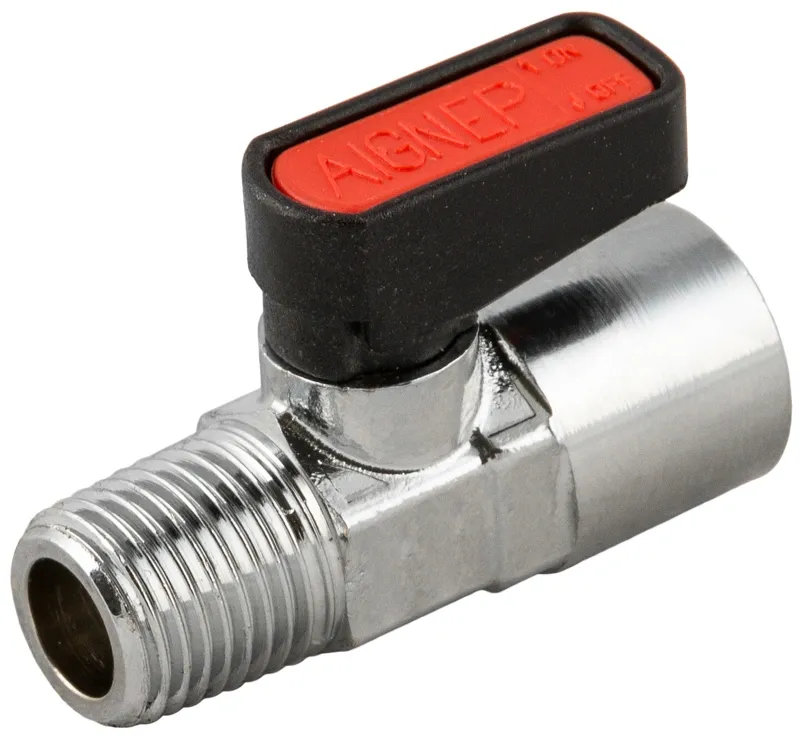

TAPER MALE R ISO 7 - FEMALE RP ISO 7 VALVE
Technical characteristics / catalogAignep Scan Labels Certifications

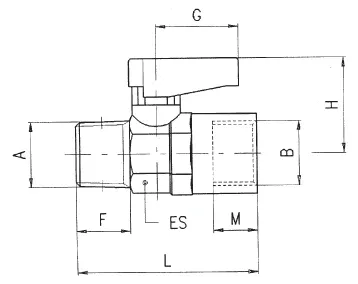

| Code | Draw | A | B | D.N. | ES | F | M | L | G | H | Bag |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 06310 00 001 | Download | 1/8 | 1/8 | 6 | 14-15 | 7,4 | 7,4 | 36 | 19 | 21 | 10 |
| 06310 00 002 | Download | 1/4 | 1/8 | 6 | 14-15 | 11 | 7,4 | 40,5 | 19 | 21 | 10 |
| 06310 00 003 | Download | 1/4 | 1/4 | 6 | 14-15 | 11 | 11 | 43 | 19 | 21 | 10 |
| 06310 00 004 | Download | 3/8 | 3/8 | 8 | 18-19 | 11,4 | 11,4 | 46 | 19 | 22 | 10 |
| 06310 00 005 | Download | 1/2 | 1/2 | 10 | 22-23 | 15 | 15 | 57 | 26 | 30,5 | 10 |
| 06310 00 066 | Download | 3/4 | 3/4 | 14 | 28-30 | 16,3 | 16,3 | 63 | 50 | 33 | 5 |
