3044

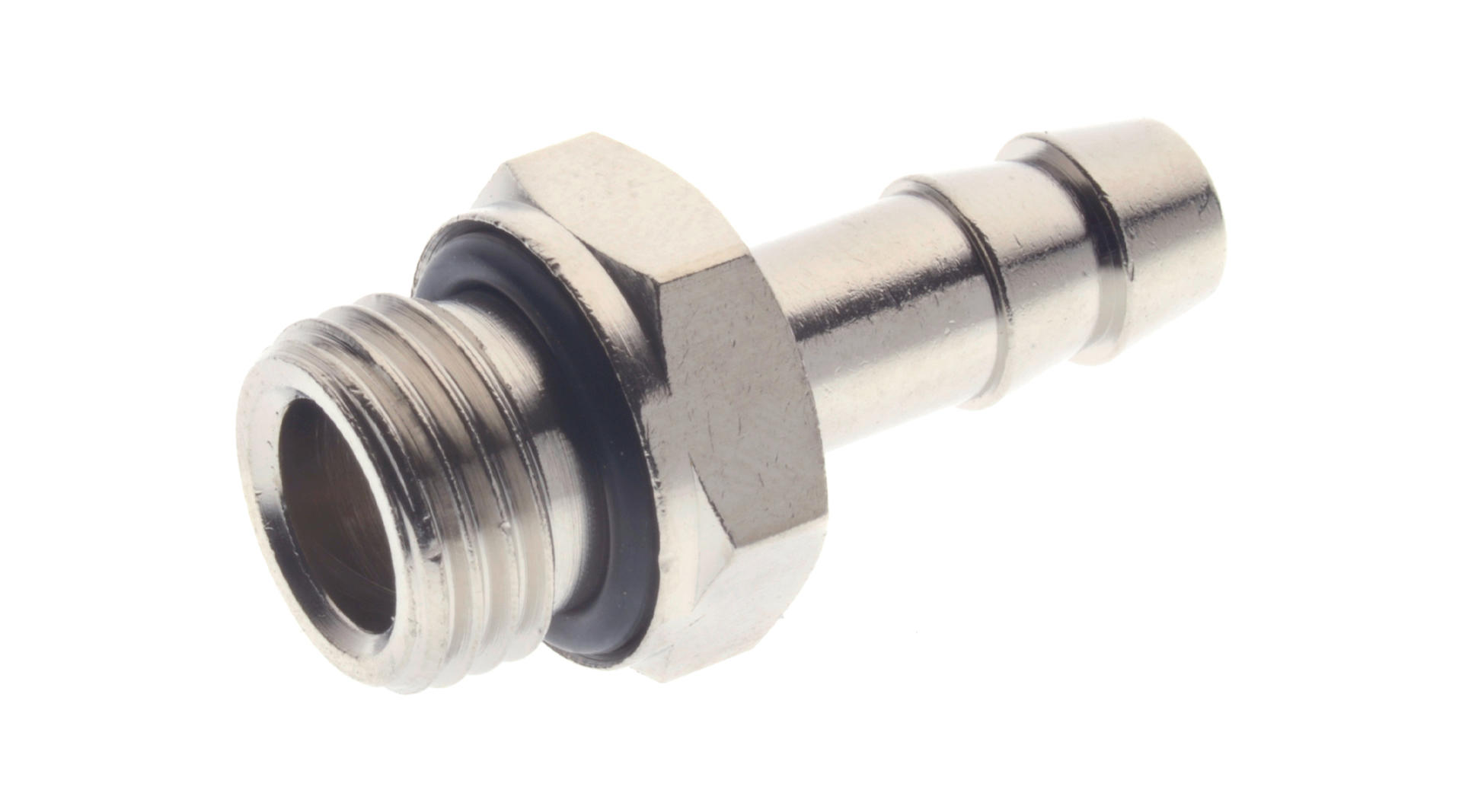

MALE HOSE ADAPTER (PARALLEL) WITH O-RING
Technical characteristics / catalogAignep Scan Labels Certifications

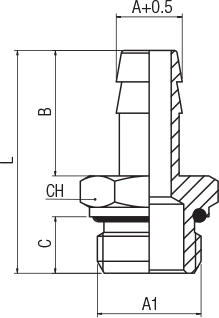

| Code | Draw | A | A1 | B | C | L | CH | °C Min | °C Max | Bag |
|---|---|---|---|---|---|---|---|---|---|---|
| 03044 00 001 | Download | 4,5 | M5 | 15 | 3.6 | 24 | 8 | -20 | +80 | 10 |
| 03044 00 023 | Download | 6 | 1/4 | 20 | 7.1 | 34,5 | 16 | -20 | +80 | 10 |
| 03044 00 002 | Download | 7 | 1/8 | 20 | 5.4 | 31 | 13 | -20 | +80 | 10 |
| 03044 00 003 | Download | 7 | 1/4 | 20 | 7.1 | 34,5 | 16 | -20 | +80 | 10 |
| 03044 00 004 | Download | 8 | 1/8 | 20 | 5.4 | 31 | 13 | -20 | +80 | 10 |
| 03044 00 005 | Download | 8 | 1/4 | 20 | 7.1 | 34,5 | 16 | -20 | +80 | 10 |
| 03044 00 024 | Download | 8 | 3/8 | 20 | 8.1 | 35,5 | 19 | -20 | +80 | 10 |
| 03044 00 015 | Download | 8 | 1/2 | 20 | 9.6 | 37,5 | 24 | -20 | +80 | 10 |
| 03044 00 006 | Download | 9 | 1/8 | 20 | 5.4 | 31 | 13 | -20 | +80 | 10 |
| 03044 00 007 | Download | 9 | 1/4 | 20 | 7.1 | 34,5 | 16 | -20 | +80 | 10 |
| 03044 00 008 | Download | 9 | 3/8 | 20 | 8.1 | 35,5 | 19 | -20 | +80 | 10 |
| 03044 00 025 | Download | 10 | 1/4 | 20 | 7.1 | 34,5 | 16 | -20 | +80 | 10 |
| 03044 00 026 | Download | 10 | 3/8 | 20 | 8.1 | 39,5 | 19 | -20 | +80 | 10 |
| 03044 00 027 | Download | 10 | 1/2 | 22 | 9.6 | 39,5 | 24 | -20 | +80 | 10 |
| 03044 00 009 | Download | 12 | 1/4 | 20 | 7.1 | 34,5 | 16 | -20 | +80 | 10 |
| 03044 00 010 | Download | 12 | 3/8 | 20 | 8.1 | 35,5 | 19 | -20 | +80 | 10 |
| 03044 00 011 | Download | 12 | 1/2 | 22 | 9.6 | 39,5 | 24 | -20 | +80 | 10 |
| 03044 00 016 | Download | 13 | 1/2 | 22 | 9.6 | 39,5 | 24 | -20 | +80 | 10 |
| 03044 00 028 | Download | 14 | 1/4 | 24 | 7.1 | 38,5 | 16 | -20 | +80 | 10 |
| 03044 00 020 | Download | 14 | 3/8 | 24 | 8.1 | 39,5 | 19 | -20 | +80 | 10 |
| 03044 00 021 | Download | 14 | 1/2 | 24 | 9.6 | 41,5 | 24 | -20 | +80 | 10 |
| 03044 00 012 | Download | 17 | 3/8 | 24 | 8.1 | 39,5 | 19 | -20 | +80 | 10 |
| 03044 00 013 | Download | 17 | 1/2 | 24 | 9.6 | 41,5 | 24 | -20 | +80 | 10 |
| 03044 00 017 | Download | 19 | 3/4 | 30 | 11.1 | 49 | 33 | -20 | +80 | 10 |
| 03044 00 022 | Download | 20 | 3/4 | 35 | 11.1 | 54 | 33 | -20 | +80 | 10 |
| 03044 00 018 | Download | 25 | 1" | 30 | 11.8 | 49,7 | 37 | -20 | +80 | 10 |
| 03044 00 019 | Download | 27 | 1" | 30 | 11.8 | 49,7 | 37 | -20 | +80 | 10 |
