6410

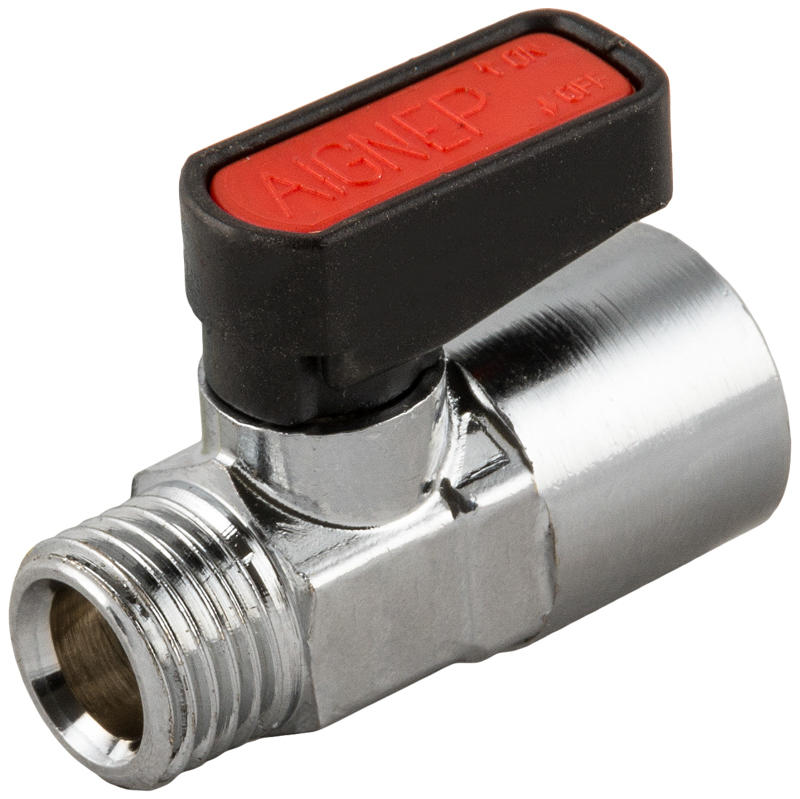

VALVOLA MASCHIO CILINDRICO GA ISO 228 - FEMMINA G ISO 228
Caratteristiche tecniche / CatalogoEtichette Aignep Scan Certificati

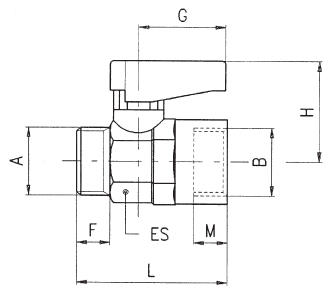

| Codice | Disegno 3D | A | B | D.N. | ES | F | M | L | G | H | Confezione |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 06410 00 001 | Download | 1/8 | 1/8 | 6 | 14-15 | 7 | 7 | 34 | 19 | 21 | 10 |
| 06410 00 002 | Download | 1/4 | 1/8 | 6 | 14-15 | 8 | 7 | 35 | 19 | 21 | 10 |
| 06410 00 003 | Download | 1/4 | 1/4 | 6 | 14-15 | 8 | 8 | 35 | 19 | 21 | 10 |
| 06410 00 004 | Download | 3/8 | 3/8 | 8 | 18-19 | 9 | 9 | 39 | 19 | 22 | 10 |
| 06410 00 005 | Download | 1/2 | 1/2 | 10 | 22-23 | 10 | 10 | 45 | 26 | 30,5 | 10 |
| 06410 00 066 | Download | 3/4 | 3/4 | 14 | 28-30 | 12 | 12 | 52 | 50 | 33 | 5 |
