9550

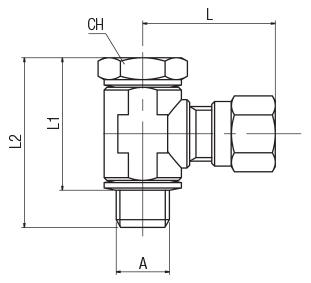

RACCORDO ORIENTABILE A L CON VITE
Caratteristiche tecniche / CatalogoEtichette Aignep Scan Certificati
| Codice | Disegno 3D | Tubo | A | L | L2 | L1 | CH | °C Min | °C Max | Confezione |
|---|---|---|---|---|---|---|---|---|---|---|
| 09550 00 001 | Download | 4 | 1/8 | 23 | 31 | 24 | 14 | -20 | +80 | 10 |
| 09550 00 002 | Download | 6 | 1/8 | 24 | 31 | 24 | 14 | -20 | +80 | 10 |
| 09550 00 003 | Download | 6 | 1/4 | 27,5 | 32 | 24,5 | 17 | -20 | +80 | 10 |
| 09550 00 004 | Download | 8 | 1/8 | 27,5 | 31 | 24 | 14 | -20 | +80 | 10 |
| 09550 00 005 | Download | 8 | 1/4 | 27,5 | 32 | 24,5 | 17 | -20 | +80 | 10 |
| 09550 00 006 | Download | 8 | 3/8 | 30 | 37,5 | 24,5 | 19 | -20 | +80 | 10 |
| 09550 00 007 | Download | 10 | 1/4 | 33 | 32 | 24,5 | 17 | -20 | +80 | 10 |
| 09550 00 008 | Download | 10 | 3/8 | 33,5 | 36 | 27,5 | 19 | -20 | +80 | 10 |
| 09550 00 009 | Download | 12 | 3/8 | 36 | 46 | 38 | 22 | -20 | +80 | 10 |
