1050

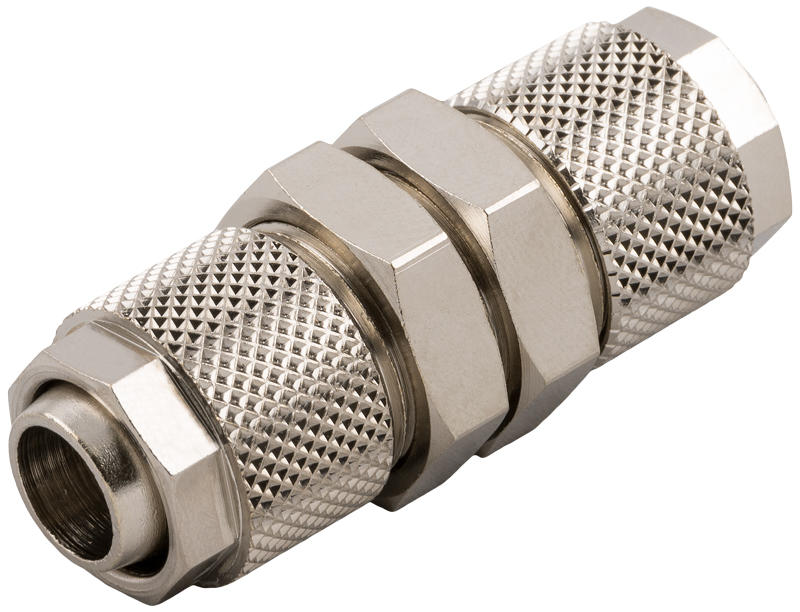

RACCORDO INTERMEDIO DI ATTRAVERSAMENTO
Caratteristiche tecniche / CatalogoEtichette Aignep Scan Certificati

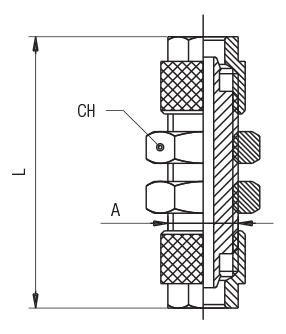

| Codice | Disegno 3D | Tubo | Tubo | A | L | CH | Confezione |
|---|---|---|---|---|---|---|---|
| 01050 00 001 | Download | 4/2.7 | 4/2.7 | M6X0,5 | 35 | 10 | 10 |
| 01050 00 002 | Download | 5/3 | 5/3 | M7X0,75 | 35 | 10 | 10 |
| 01050 00 003 | Download | 6/4 | 5/3 | M10X1 | 45,5 | 14 | 10 |
| 01050 00 004 | Download | 6/4 | 6/4 | M10X1 | 45,5 | 14 | 10 |
| 01050 00 005 | Download | 8/6 | 6/4 | M12X1 | 47,3 | 17 | 10 |
| 01050 00 006 | Download | 8/6 | 8/6 | M12X1 | 48,4 | 17 | 10 |
| 01050 00 007 | Download | 10/8 | 6/4 | M14X1 | 49,8 | 17 | 10 |
| 01050 00 008 | Download | 10/8 | 8/6 | M14X1 | 51,2 | 17 | 10 |
| 01050 00 009 | Download | 10/8 | 10/8 | M14X1 | 52 | 17 | 10 |
| 01050 00 010 | Download | 12/10 | 12/10 | M16X1 | 57 | 19 | 10 |
| 01050 00 011 | Download | 15/12.5 | 15/12.5 | M20X1 | 59 | 24 | 10 |
