1028

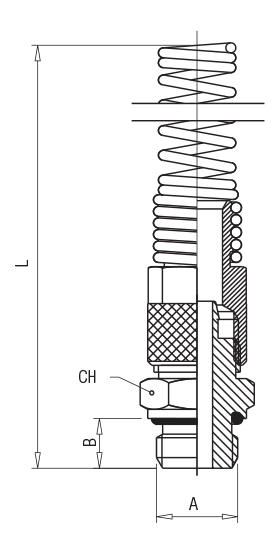

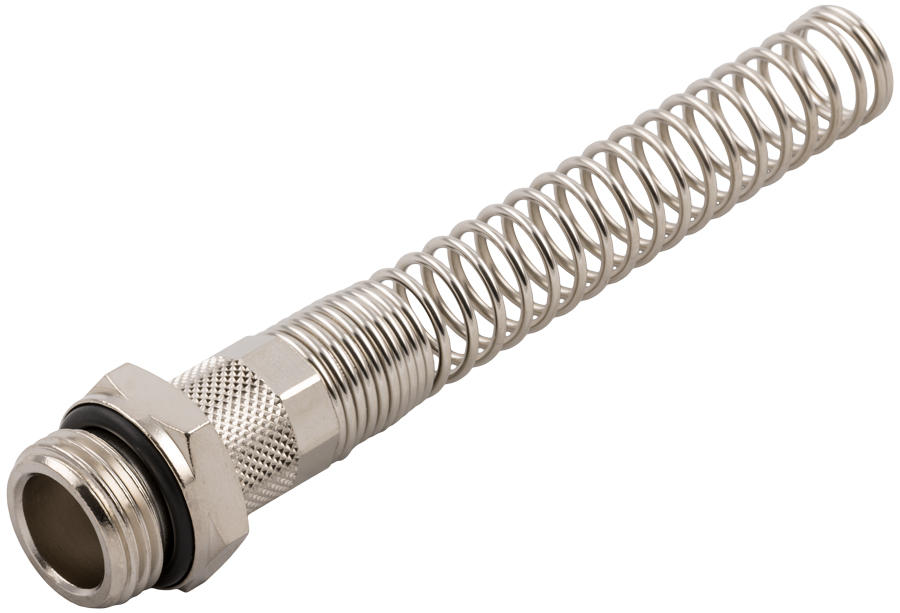

RACCORDO DIRITTO MASCHIO CILINDRICO + DADO CON MOLLA
Caratteristiche tecniche / CatalogoEtichette Aignep Scan Certificati
| Codice | Disegno 3D | Tubo | A | B | L | CH | Confezione |
|---|---|---|---|---|---|---|---|
| 01028 00 001 | Download | 6/4 | 1/8 | 5,4 | 109 | 13 | 10 |
| 01028 00 002 | Download | 6/4 | 1/4 | 7,1 | 111 | 16 | 10 |
| 01028 00 003 | Download | 6/4 | 3/8 | 8,1 | 112 | 19 | 10 |
| 01028 00 004 | Download | 6/4 | 1/2 | 9,6 | 114 | 24 | 10 |
| 01028 00 005 | Download | 8/6 | 1/8 | 5,4 | 114 | 14 | 10 |
| 01028 00 006 | Download | 8/6 | 1/4 | 7,1 | 116,5 | 16 | 10 |
| 01028 00 007 | Download | 8/6 | 3/8 | 8,1 | 117,5 | 19 | 10 |
| 01028 00 008 | Download | 8/6 | 1/2 | 9,6 | 119,5 | 24 | 10 |
| 01028 00 009 | Download | 10/8 | 1/8 | 5,4 | 121,5 | 14 | 10 |
| 01028 00 010 | Download | 10/8 | 1/4 | 7,1 | 125,5 | 16 | 10 |
| 01028 00 011 | Download | 10/8 | 3/8 | 8,1 | 125,5 | 19 | 10 |
| 01028 00 012 | Download | 10/8 | 1/2 | 9,6 | 128,5 | 24 | 10 |
| 01028 00 013 | Download | 12/10 | 3/8 | 8,1 | 133 | 19 | 10 |
| 01028 00 014 | Download | 12/10 | 1/2 | 9,6 | 134,5 | 24 | 10 |
