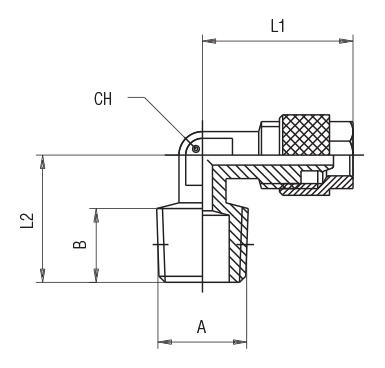

| Codice | Disegno 3D | Tubo | A | B | L1 | L2 | CH | Confezione |
|---|---|---|---|---|---|---|---|---|
| 01100 00 001 | Download | 4/2,7 | 1/8 | 7,5 | 19,5 | 15 | 8 | 10 |
| 01100 00 002 | Download | 5/3 | 1/8 | 7,5 | 19,5 | 15 | 8 | 10 |
| 01100 00 003 | Download | 6/4 | 1/8 | 7,5 | 19,5 | 15 | 8 | 10 |
| 01100 00 004 | Download | 6/4 | 1/4 | 11 | 20,6 | 19 | 8 | 10 |
| 01100 00 005 | Download | 6/4 | 3/8 | 11,5 | 21 | 21 | 9 | 10 |
| 01100 00 006 | Download | 8/6 | 1/8 | 7,5 | 19,9 | 16,5 | 9 | 10 |
| 01100 00 007 | Download | 8/6 | 1/4 | 11 | 21,9 | 19 | 9 | 10 |
| 01100 00 008 | Download | 8/6 | 3/8 | 11,5 | 23,4 | 21 | 9 | 10 |
| 01100 00 009 | Download | 8/6 | 1/2 | 14 | 26 | 28 | 16 | 10 |
| 01100 00 010 | Download | 10/8 | 1/8 | 7,5 | 25 | 18 | 11 | 10 |
| 01100 00 011 | Download | 10/8 | 1/4 | 11 | 24 | 22 | 11 | 10 |
| 01100 00 012 | Download | 10/8 | 3/8 | 12,5 | 25,5 | 22,5 | 11 | 10 |
| 01100 00 013 | Download | 10/8 | 1/2 | 14 | 28 | 28 | 16 | 10 |
| 01100 00 014 | Download | 12/10 | 3/8 | 11,5 | 27 | 22,5 | 13 | 10 |
| 01100 00 015 | Download | 12/10 | 1/2 | 14 | 30 | 28 | 16 | 10 |
| 01100 00 016 | Download | 15/12,5 | 1/2 | 14 | 31,5 | 28 | 16 | 10 |
